WOHLER VIS220/230/250視像檢查系統/內窺鏡

由可充電電池供電的沃勒VIS220視頻檢查系統採用創新型鏡頭，用於管徑28mm 至150mm之間的管道檢查。系統整體為可擕式設計，包含一個小型彩色鏡頭，不銹鋼外殼鏡頭耐磨性好 ，防水能力達3bar （耐30m水深壓力）。內芯為強化玻璃光纖，外皮為塑膠的推索長20米，推動鏡頭在管道內移動，推索可輕鬆通過90度直角及P型、S型、U型彎管，推索帶有米數標記， 檢查時便於在管道內定位。可傾斜式監視器帶 2米連接線，操作、控制簡便。系統帶視頻輸出端口，適用于文檔編輯。

應用

檢查40豪米到150豪米直徑的污水管, 食水管, 空調管道

技術資料

VIS220監視器解析度：960×234圖元，（PAL

TFT顯示幕：5.6英寸

視頻輸出：RCA/FBAS

重量：1.8kg

電池：12V，鎳鎘蓄電池

電池蓄電量可操作時間：1.5小時

環境溫度要求：0-40℃

特點:

1.  彩色小鏡頭外徑26mm，耐磨不銹鋼外殼設計

2.  防水至30米/3公斤壓力

3.  可移動式5.5英寸監視器，帶2米連接線

4.  高柔韌性的強化玻璃纖維推索，帶米數標記

5.  系統所用的可充電蓄電池電量可持續檢測1.5小時

6.  鏡頭上有LED作照明

7.  可外接錄像機

8.  可擕式設計，整套系統被集成在一個手提設備

VIS220套裝

包括:

1. TFT彩色顯示屏連2米電纜

2. 內芯為強化玻璃光纖，外皮為塑膠的推索長20米，推動鏡頭在管道內移動, 帶長度標記

3. 一個小型彩色鏡頭

4. 2個充電電池連充電器.

訂貨號: S13900

VIS250套裝

包括:

1. TFT彩色顯示屏連2米電纜

2. 內芯為強化玻璃光纖，外皮為塑膠的推索長20米，推動鏡頭在管道內移動, 帶長度標記

3. 一個小型彩色鏡頭

4. 2個充電電池連充電器.

5. 鏡頭尋找器

訂貨號: S13910

VIS230套裝

包括:

1. TFT彩色顯示屏連2米電纜

2. 內芯為強化玻璃光纖，外皮為塑膠的推索長30米，推動鏡頭在管道內移動, 帶長度標記

3. 一個小型彩色鏡頭

4. 2個充電電池連充電器.

5. 可後加鏡頭尋找器

訂貨號: S13950

WÖHLER VIS220 / VIS230 / VIS250 Service Camera

The battery driven Wöhler VIS 220 innovative service camera provides inspection capabilities in pipes from 40 mm to 150 mm Ø.

The compact system case contains a miniature color camera head with durable stainless steel housing and waterproofness up to 3 bar / 30M.

The camera head is moved with 20 m glass-fiber reinforced plastic rod through pipes and passes 87° bends easily. The metric marking on the push rod makes location simple.

The tiltable monitor with 2 m cable provides perfect handling.

The system provides a video out socket for documentation purposes.

Applications:Video inspection of sewer and water pipes, drainages, flue lines, ductwork etc. from 40 to 150 mm diameter

Specifications:VIS 220 Monitor Resolution: 960 x 234 Pixel(PAL or NTSC)
TFT display: 5.6 diagonal
Video OUT: RCA / FBAS
Weight: 1,800 g
Batteries: 12V, NiCd
Operation time: approx. 1,5 hours
Ambient temp.: 0 to 40°C
Mini Camera Head: 鏡頭
Typ: 1/3 Color CCD
Resolution: PAL:(H)500x(V)582 Pixel / NTSC: (H)510x(V)592 Pixel
Minimum Illumination: 0.5 Lux
Operation Temperature: -10 °C ~ 50 °C, RH 95 % Max
Lens: f = 2.3 mm, F = 1.2
Field of view: 120°
Light source: color 12 white LED
b&w 12 red LEDs
waterproof according to IP 68: up to 3 bar
Dimension: Ø 26 mm x 38 mm
Weight: 60 g
Flexible push rod:
Diameter: 6 mm
Length: 20 m
Metric marking on rod

Advantages:

1. miniature color camera head with 26 mm Ø and durable stainless steel housing

2. waterproof up to 3 bar / 30M

3. tiltable 5.5 monitor with 2 m cable

4. flexible glass-fiber reinforced rod with metric marking

5. battery-supplied inspection of up to 1.5h

6. power status LED

7. video output by RCA socket for documentation

8. complete inspection set in one compact case

Ordering details:

VIS220 Service Camera Set:

Comes with:

1. case with TFT monitor, 2m monitor cable

2. 20 m flexible push rod with metric marking

3. miniature camera head color

4. 2 rechargeable batteries with charger

   Order No.: S13900

Ordering details:

VIS250 Service Camera with locating device Set:

Comes with:

1. case with TFT monitor, 2m monitor cable

2. 20 m flexible push rod with metric marking

3. miniature camera head color

4. 2 rechargeable batteries with charger

5. locator consisting of handheld receiver, transmitter and headphones

   Order No.: S13910

Ordering details:

VIS230 Service Camera Color Set:

Comes with:

1. case with TFT monitor, 2m monitor cable

2. 30 m flexible push rod with metric marking  30米長管

3. interchangeable miniature camera head color  可更換鏡頭

4. 2 rechargeable batteries with charger 2枚充電電池

5. ready for LOCATOR  可後加尋找器

   Order No.: S13950

VIS330/VIS350 工業視頻內窺鏡最新型

包括: L 24主機, 發射器, 耳筒.

L 24使用32kHZ 頻頻的信號去尋找鏡頭在管道內, 牆壁中或地底的位置.

應用

尋找鏡頭位置或深度

發射器

頻率: 32.768 kHz

接收器

套裝包括

1. 接收器連9V電池

2. 耳筒及發射器

訂貨號: S13820

L 24 Lokator Set

consisting of:

Lokator L 24, transmitter and headphones The compact, handheld L 24 Locator uses a 32kHZ frequency to locate the present position of the camera inside a pipe, wall structure or even underground. The locator beacon is plugged in between the camera head and the rod. When an area of interest is found with the camera, the L 24 provides a precise positioning of the camera head. Depth localisation is also possible by triangulation. The L 24 Locator provides both a visual and auditory indicator of signal strength. A headset is included.

Applications:

- localisation of the camera head incl. depth determination

Specifications:

Transmitter

Frequency: 32.768 kHz
Current supply: over camera connection
Work temperature: 0 to 55 °C
Storage temperature: -20 to 70 °C
Weight: 55 g
Size: 26 mm Ø x 90 mm

Receiver
Display: fast pointer instrument
Output impedence headphones:
typ. 8 Ohm
Current supply: 9 V battery
Work temperature: 0 to 55 °C
Storage temperature: -20 to 70 °C
Weight: 140 g
Size (cm): 13 x 6 x 3

Ordering details:

L24 locator set: comes with:

1. receiver for Wohler L24 locator with 9V battery

2. headset and transmitter for Wohler L24 locator

Order No.: S13820

VIS 2000 PRO標準套裝

VIS2000 PRO 工業內窺鏡

該產品目前廣泛應用于樓宇通風管道、空調管道、工業管用於直徑在28mm以上的工業管道、通風系統以及水管內 部焊縫、腐蝕、堵塞、差異、異物等情況的視頻檢測。VIS 2000 PRO 視頻檢查系統可以將數位圖像和錄影捕捉到128MB記憶體卡上，通過隨機附帶的USB2.0讀卡器可以輕鬆的把存儲的圖像和錄影下載到筆記本 電腦或電腦上。攝像電纜承載裝置集成了一體化記米器具有測距功能 （檢測距離可即時顯示在監視器螢幕上），從而簡化了檢測中的定位問題。

VIS2000 PRO 監視器

解析度: 768×512 圖元 (PAL)，640×480圖元(NTSC)。

尺寸：27×20×6cm

TFT顯示幕尺寸：6.5”（對角線）

CF存儲卡：128MB

視頻輸出：FBAS信號

重量：1300g 　　電池：72V，NIMH

操作時間：2小時　　環境溫度：0－40℃

實屏功能表顯示：檢測距離顯示，日期和時間， 10位元字元標題輸入與沃勒所有攝像頭相容

彩色旋轉鏡頭

鏡頭直徑：51mm 　　 類型：彩色CCD

光敏度：0.4Lux

物鏡：f = 2.0 mm, F = 2.0

圖像視角：對角118°， 水準97°， 垂直74°

旋轉： 360°， 翻轉:180°

鏡頭達到IP64防水標準

光源：4個散射燈和6個可開關的超亮白色LED燈

尺寸: 51mm×99mm，重量：240g

VIS2000PRO 標準配置

彩色監視器配備可肩背皮革保護包

128 MB CF存儲卡和USB讀卡器

可旋轉、翻轉VIS 2000彩色攝像頭

廣角直視26mm彩色鏡頭

電纜承載裝置帶一體化計數器和GRP檢測線20米，線芯7 mm

帶保護套的滾輪導向器

帶定心星固定器的固定套

VIS 2000 Pro電源

手提儀器箱XXL

特點

可擕式設計，監視器配備避光保護

圖片和錄影數位化CF存儲卡（128MB）

類比視頻信號輸出

菜單：檢測距離顯示,日期,時間,標題

可360°旋轉和180°翻轉攝像頭使檢查既簡單又準確

防水攝像頭

彩色大TFT 顯示幕

簡易的按鍵操作

可開關的LED輔助燈

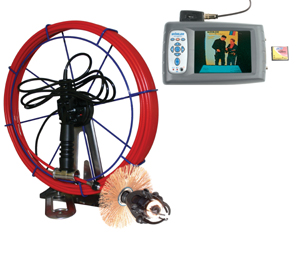

VIS 2000 PRO -Standard Set

Applications:

-inspection and direct documentation of flue lines, ventilations chimneys from a Ø of 70 mm
-Menu insertion: length announcement (optional with viper or cable winder), date, time, cursor and title with 10 figures

-compatible to all WÖHLER camera heads

Specifications:: Monitor VIS2000PRO
Resolution: 768 x 512 Pixel (PAL)
640 x 480 Pixel (NTSC)
Size housing: 27 x 20 x 6 cm
size TFT display:6.5
CF card:128 MB
Video Out:FBAS signal
Weight:1,300 g
Current supply:7.2 V, NiMH
Operation time:typ. 2 hours
Work temp.:0 to 40°C
Standard tripod connection
Camera head
Type:Colour camera CCD
Light sensitivity: 0.4 Lux
Objective:f = 2.0 mm, F = 2.0
Image angle:diagonal 118°, horizontal 97°, vertical 74°
Rotating:360°
Swivelling:180°
splash proof according to IP 64
Light sources:4 filament lamps under diffuser and 6 switchable white LEDs
Size: Ø 51 mm x 99 mm
Weight:240 g

Advantages:

-compact, light monitor with leather protection bag with glare protection and shoulder belt - can be carried in front of your body

-digital memory for pictures and videos - 128 MB CFcard
-output for analogue video signal
-menu insertion: length announcement, date, time, title
-easy operation over key pads
-big colour TFT display
-splash proof camera head
-easy and accurate inspection by a pan and tilt camera head (180° and 360°)
-switchable additional LEDs

Ordering details:

VIS2000^PRO Video Inspection System Standard set:

comes with:

1. VIS2000^PRO  color TFT monitor with protection bag

2. shoulder belt

3. CF card 512MB and card reader USB

4. pan and tilt camera head color

5. 20m camera cable with metric marking on the cable

6. power supply

Order No.: S17907

The video inspection system can be used for optical control and examination of vertically running exhaust systems (modern chimneys) from a min. diameter of 7 cm. With this set the camera head is let down in the chimney by the cable. NEW!!! NOW WITH INTEGRATED METER COUNTER (SHOWN IN DISPLAY OF THE MONITOR)!!!

Applications:

-inspection and direct documentation of flue lines, ventilations and chimneys from 70 mm Ø
-Menu insertion: length announcement (optional with viper or cable winder), date, time, cursor and title with 10 figures
-compatible to all WÖHLER camera heads

Specifications:

Monitor VIS2000PRO

Resolution: 768 x 512 Pixel (PAL)
640 x 480 Pixel (NTSC)
Size housing: 27 x 20 x 6 cm
size TFT display:6.5
CF card:128 MB
Video Out:FBAS signal
Weight:1,300 g
Current supply:7.2 V, NiMH
Operation time:typ. 2 hours
Work temp.:0 to 40°C
Standard tripod connection

Camera head
Type:Colour camera CCD
Light sensitivity: 0.4 Lux
Objective:f = 2.0 mm, F = 2.0
Image angle:diagonal 118°, horizontal 97°, vertical 74°
Rotating:360°
Swivelling:180°
splash proof according to IP 64
Light sources:4 filament lamps under diffuser and 6 switchable white LEDs
Size: Ø 51 mm x 99 mm
Weight:240 g

Advantages:

-compact, light monitor with leather protection bag with glare protection and shoulder belt - can be carried in front of your body
-digital memory for pictures and videos - 128 MB CFcard
-output for analogue video signal
-menu insertion: length announcement, date, time, title
-easy operation over key pads
-big colour TFT display
-splash proof camera head
-easy and accurate inspection by a pan and tilt camera head (180° and 360°)
-switchable additional LEDs

VIS2000^PRO Video Inspection System Advance set:

comes with:

1. VIS2000^PRO  color monitor

2. CF card 512MB and card reader USB2.0

3. leather protection bag with glare protection and shoulder belt

4. pan and tilt camera head color

5. 20m camera cabel on cable winder with integrated distance measurement with 0.05m resolution(shown on monitor)

6. transport case XXL

Order No.: S17919

The video inspection system can be used for optical control and examination of horizontally and vertically running exhaust systems (modern chimneys) as well as for sewers and ventilation systems from a min. diameter of 7 cm. As drive the GRP camera rod with integrated current supply is used. NEW!!! NOW WITH INTEGRATED METER COUNTER (SHOWN IN DISPLAY OF THE MONITOR)!!!

Applications:

-inspection and direct documentation of flue lines and ventilations as well as as water pipes from a Ø of 70 mm
-Menu insertion: length announcement, date, time, cursor and title with 10 figures
-compatible to all WÖHLER camera heads

Specifications:

Monitor VIS2000PRO
Resolution: 768 x 512 Pixel (PAL)
640 x 480 Pixel (NTSC)
Size housing: 27 x 20 x 6 cm
size TFT display:6.5
CF card:128 MB
Video Out:FBAS signal
Weight:1,300 g
Current supply:7.2 V, NiMH
Operation time:typ. 2 hours
Work temp.:0 to 40°C
Standard tripod connection
Camera head
Type:Colour camera CCD
Light sensitivity: 0.4 Lux
Objective:f = 2.0 mm, F = 2.0
Image angle:diagonal 118°, horizontal 97°, vertical 74°
Rotating:360°
Swivelling:180°
splash proof according to IP 64
Light sources:4 filament lamps under diffuser and 6 switchable white LEDs
Size: Ø 51 mm x 99 mm
Weight:240 g

Advantages::

-compact, light monitor with leather protection bag with glare protection and shoulder belt - can be carried in front of your body
-digital memory for pictures and videos - 128 MB CFcard
-output for analogue video signal
-menu insertion: length announcement, date, time, title

-easy operation over key pads
-big colour TFT display
-splash proof camera head
-easy and accurate inspection by a pan and tilt camera head (180° and 360°)
-switchable additional LEDs

VIS2000^PRO Video Inspection System Professional set:

comes with:

1. VIS2000^PRO  color monitor

2. leather protection bag and shoulder belt

3. pan and tilt camera head color

4. viper with digital meter counter and stand

5. 20m GRP rod 7mm diameter, camera roller guide with protection cage

6. stabilisation sleeve with star holder

7. CF card 128 MB

8. power supply

9. transport case XXL

Order No.: S16835

Cable(延長電纜):

Order No.: S18636      VIS2000 extension cable, 10 m with metric marking

Order No.: S19172      VIS2000 extension cable, 20 m with metric marking

Order No.: S17812      VIS2000 extension cable, 30 m with metric marking

Order No.: S17845      VIS2000 extension cable, 50 m with metric marking

1) Woehler Telescopic Glass Mirror Small 小鏡子

　- Pan and tilt, telescopic handle, 15-100cm, 2.6X7cm, mirror,

     leather sleeve (15-100厘米，2.6x7厘米)

     訂貨號: S18670

2) Woehler Telescopic Glass Mirror Medium 中鏡子

　- Pan and tilt, telescopic handle, 15-100cm, 5X8cm, mirror,

     leather sleeve (15-100厘米，5x8厘米)

     訂貨號: S18060

3) Woehler Telescopic Glass Mirror Large  大鏡子

　- Pan and tilt, telescopic handle, 15-100cm, 10X15cm, mirror,

     leather sleeve (15-100厘米，10x15厘米)

     訂貨號: S11107
