UNIVERSAL MOISTURE METER
WOOD,
BUILDING, PAPER, CARDBOARD, ...

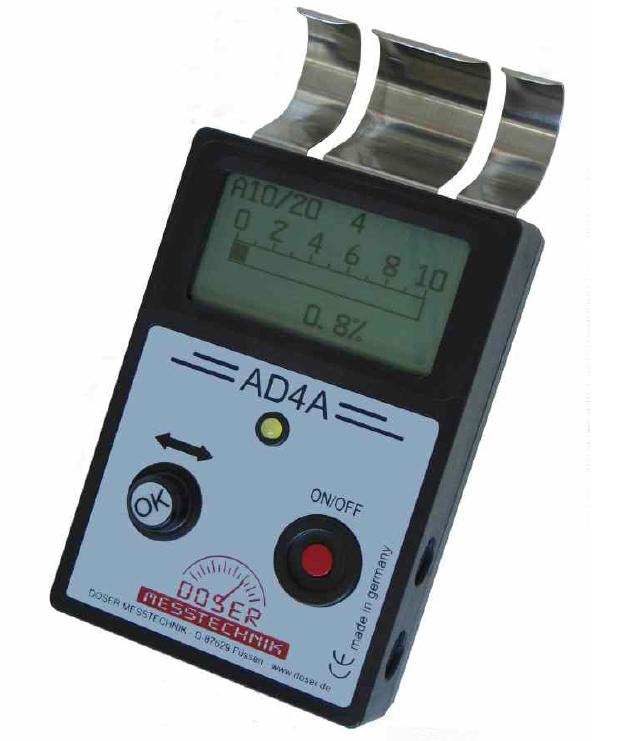

AD4A
Universal instrument with analogue and digital
display for
measuring moisture
content in wood, building materials,
paper, isolation materials and other
materials.
It
can aso be used in caravans, trailers, mobile homes and
for measuring moisture in glass fibre
plastic boats
(problematic nature of osmose).
With additional sensors it can be used for
measuring
temperature, rel. humidity, dewpoint.
Technical data:
measuring range: 0 -
100% (adjustable)
resolution: 0,1%
measuring depth: approx. 4 cm
attenuation: 0 - 99% (adjustable)
storage: 16 x 128 material moisture values
16 000 sensor values
dimension: approx. 200 x 80 x 40 mm
weight: 250 g
interface: RS232 / AD4A-S
Download product PDF
DM4A
Moisture meter with
digital display for measuring moisture
content in wood, building materials,
paper, cardboards, isolation materials and other
materials. It can also be
used in caravans,
trailers , mobile homes or for measuring
moisture in plastic boats
(problematic nature of osmose).
Technical data:
measuring range: 0 -
100% (adjustable)
resolution: 0,1%
measuring depth: approx. 4 cm
measuring rate: 1 - 10 meas. / sec (adjustable)
attenuation: 0 - 99% (adjustable)
storage: 100 values
dimension: approx. 200 x 80 x 40 mm
weight: 250 g
interface: RS232 / DMI-Controller
Download product PDF
|
 |
|
|
DS4A
Universal
instrument with digital display for measuring
moisture content in wood, building materials, paper,
isolation materials and other materials.
It can aso be used in caravans, trailers, mobile homes
and for measuring moisture in glass
fibre plastic boats
(problematic nature of osmose). With
additional sensors it can be used for measuring
temperature, rel. humidity, dewpoint.
Technical data:
measuring range: 0 -
100% (adjustable)
resolution: 0,1%
measuring depth: approx. 3 cm
measuring rate: 1 - 10 meas. / sec (adjustable)
attenuation: 0 - 99% (adjustable)
storage: 250 moisture values
16 000 sensor values
dimension: approx. 200 x 80 x 40 mm
weight: 250 g
interface: RS232 / DMI-Controller
Download product PDF
| |
|
|
DM7-AL
Moisture meter with digital display for
measuring moisture content in
veneers, corrugated boards,
cardboard tubes, single cardboards and other materials.
High sensitive instrument with metal lower case part
for better protection against mechanical and
electrostatical strength.
Technical data:
measuring range: 0 -
100% (adjustable)
resolution: 0,1%
measuring depth: approx. 1 cm
measuring rate: 1 - 10 meas. / sec (adjustable)
attenuation: 0 - 99% (adjustable)
storage: 100 values
dimension: approx. 180 x 80 x 40 mm
weight: approx. 420 g
interface: RS232 / DMI-Controller
Download product PDF
VENEER MOISTURE METER
DS7-AL
Veneer moisture
meter
- optimised for veneers
- name of the veneer is displayed in different
languages
- 30 different calibration curves for veneers already
implemented
- with lower case part made of aluminum for better
protection against mechanical
and
electrostatical strength
- it can be tested and calibrated with the optional
calibration module type
PE30-7
Technical data:
measuring range: 0 -
20% (adjustable)
resolution: 0,1%
measuring depth: approx. 1 cm
measuring rate: 1 - 10 meas. / sec (adjustable)
attenuation: 0 - 99% (adjustable)
storage: 100 values
dimension: approx. 180 x 80 x 40 mm
weight: approx. 420 g
interface: RS232 / DMI-Controller
Download product PDF
| |
|
DS5-AL
Moisture meter with digital display for measuring moisture content
in waste paper, pellets, wooden chips, etc.
- round sensor with sharp top Ø 10 mm x 420 mm
- material group adjustment via key pad
- adjusted material setting is always shown in the display
- calibration possible with the optional available test module PE50R
- calibration curves for different materials
- with aluminium bottom case part for a better protection against
mechanical and electrostatical
strength
In waste paper balls a hole must be drilled with an optional
available snake drill
Optional PC-software for
- adjustment of measurement parameters
- generating of specific calibration curves, based on
comparing measurements
- transferring of measured values for visualisation and
documentation
Technical data:
measuring range: 0 -
100% (adjustable)
resolution: 0,1%
measuring depth: approx. 5 cm
round the tip
measuring rate: 1 - 10 meas. / sec (adjustable)
attenuation: 0 - 99% (adjustable)
storage: 250 values
dimension: approx. 200 x 80 x 40 mm
dimension: approx. Ø 10 mm x 420 mm
weight: approx. 430 g
interface: RS232 / DMI-Controller
Download product PDF
MOISTURE MEASURING SYSTEM
VARIABLE MEASURING LENGTH PELLETS,
SAWDUST,
WOOD CHIPS,
GRANULATES, CEREALS, ...
DS18
Display and
controlling unit for different sensors
Technical data:
measuring range: 0 -
100% (adjustable)
resolution: 0,1%
measuring rate: 1 - 10 meas. / sec (adjustable)
attenuation: 0 - 99% (adjustable)
storage: 250 values
dimension: approx. 200 x 80 x 40 mm
weight: approx. 250 g
interface: RS232 / DMI-Controller
CMS22 rod
sensor for wooden palets, saw dust, wood chips,
granulates, etc.
Technical data:
dimension: Ø22 x 200
mm
measurement aera :
approx. 10 cm round the sensor
weight: approx. 300 g
measuring principle:
dielectric
interface: RS232 / DMI-Controller
Download product PDF
MOISTURE METER WITH PIN ELECTRODES
LWM2 Moisture meter
with conductance measuring principle and
digital display for wood, corrugated boards, isolation
materials, building materials, ...
measuring electrodes can be changed
standard electrodes type SP20 (Ø2 x 20 mm) made of
stable stainless steel, very sharp tips
optional there are the following electrodes available:
- type SP50I: rod electrode Ø2 x 50 mm with isolation for
measurements in the depth,
with sharp tip
- type SP200: rod electrode Ø3 x 200 mm e.g. for
meaurements in drilled holes
- type F6x200: flatten electrodes 0,5 x 6 x 200 mm made of
spring steel for measurements in
splits
Technical data:
measuring range:
5-30%
accuracy: ±1% (related to resistance measurement)
resolution: 0,1%
dimensions: approx. 150 x 6 x 25 mm
Weight: approx. 150 g
