testo temperature, humidity, velocity, pressure instruments




Temp :testo105, testo106, testo110, testo175, testo177, testo 171, testo720, testo 735, testo905, testo915, testo925, testo926, testo945, testo950

Humidity: testo171, testo175, testo177, testo605, testo606, testo608, testo615, testo625, testo635, testo645, testo650…

Pressure: testo312, testo506, testo511, testo512, testo520, testo525, testo555, testo560…

Velocitytesto405, testo416, testo417, testo425, testo435, testo445, testo 400

Flue Gas Analyzer: testo 325M/XL, testo 327, testo 330, testo 335, testo 350M/XL, testo 360

Gas Detector: testo 315, testo 316, testo 317, testo 318, testo 319, testo 535

On-line measurement: testo6740, testo 600/650, testo 6340, testo 6441

Infrared Thermometer: testo825, testo826, testo830, testo845(new), testo850,testo860

Others:  testo 815, testo 816, testo 230, testo 240, testo 545, testo 465, testo 470, testo 475, testo 476, testo 460, testo  540, testo 205, testo 206, testo 265

Pocketline(New): testo905-T1, testo 905-T2, testo 810, testo 605-H1, testo 606-1/-2, testo 610, testo 510, testo 511, testo 540, testo 460, testo 410-1/-2, testo 405



Germany CS Compressed air measuring instruments

Dewpiont measurement:

FA 410 dewpiont sensor (-80 … +20 ºCtd)

FA 415 / FA 416 dewpoint sensor (-20 … +50 ºCtd)

FA 400 dewpoint sensor, with display(-80 … +20 ºCtd)

FA 300 Ex-proof dewpoint sensor (-80 … +20 ºCtd)

DP 300 portable dewpoint instrument

Flow and consumption:

VA 400 flow and consumption sensor(insertion type)

VA 410 flow and consumption sensor(in-line)

Leak Detection:

LD 300 portable ultrasonic leak detector

Multi-function:

DS 300 display with logger function

DS 300-P portable multi-function instrument

CS 2390 portable measuring instrument



For many years CS has been a leading solution provider for compressed air measurement technology. We have recently renewed and extended our product range. You are invited to browse through this web page where you can find the right solutions for your measurement tasks. Besides product specifications and technical data you can also find information about the importance of measurement. If you have any questions or inquiries, please don't hesitate to contact us.

Thomas Fischer
(Managing Director, CS Instruments)



 Temperature Measurement



testo mini-thermometer

Application

       Measure air, powder and liquid temperature.

Specification

        Sensor: NTC
     a.Range-50~+150
        Insertion Dept: 120mm/4mm dia.
        P/N: ST-0525

        List price: HKD219,-



     b.Range -50~+250
        Insertion Dept: 200mm/4mm dia.
        P/N: ST-0526

        List price: HKD439,-

testo mini-thermometer(Surface)

Specification

        Sensor: NTC
        Range-50~+250
        Insertion Dept:

              120mm/14mm dia
        P/N: ST-0519

        List price: HKD439-

testo 905-T1 thermometer

Function
    Tunable display180°

Specification
    Sensor: K type thermocouple
    Range: -50~+350 (short period

          +500)
    Insertion Dept:200mm/3mm dia
    P/N: ST-9051

    List price: HKD670,-



Testo905-T2 surface thermometer

Specification

    Insertion Dept:150mm/12mm dia.

    P/NST-9052

    List price: HKD968,-

testo 110 thermometer

Function
  Accurate temperature measurement with various NTC probes

Specfication
  Sensor:NTC
  Range:-50~+275℃

        P/NST-1108

        List price: HKD1,533,-

Probes

a. Food probeIP65 0~150℃

    P/NST-2211

    List price: HKD1,525,-

b. Air probe    -50~150℃

    P/NST-1712

   List price: HKD947-

testo mini alarm thermometer

Function
    Upper and lower alarm limits selectable

Specification
  Sensor: NTC
  Range:-50~+150℃
  Insertion Dept:190mm/3mm dia.
  P/NST-0530
        List price: HKD820,-


testo 106 food thermometer

Function
  Fast core temperature measurement


Specification
  Range:-50~+230℃
  Dimension:215*34*19mm
  Audible alarm

        P/NST-1063

        List price: HKD548,-




























testo 175-T1/T2/T3 electronic temperature data logger

Features
  Built-in sensor, put in the rooms to be detected to record the temperature changes.


Specification





    Sensor:NTC





    Range:-35~+70℃





          -40~+120℃ selectable
  a.175-T1 1 channel, memory:7800

    P/NST-1754



    b.175-T2 2 channels,1 external probe socket, memory:16000

    P/NST-1755





    C.175-T3 2 channels,2 external probe sockets, memory:16000



-50~1000℃





    P/NST-1756

testo 177-T2/T3/T4 temperature data logger

Features

  Logger with 4 external probe sockets


Specification





    Sensor:NTC





    Range:-35~+70℃





          -40~+120℃ selectable
  a.177-T2  memory:48000

    P/NST-1772

    b.177-T3  3 channels,3 external probe sockets, memory:48000

    P/NST-1773



     C.177-T4  4 channels,with 4 external probe sockets,memory:48000

    P/NST-1774



testo 925 Single channel thermometer

Function
  General temperature measurement, with various probes for different applicatoins.
Specification
  Sensor:K thermocouple,1channels
  Range:-50‵+1000

    P/NST-9250

    List price: HKD1,263,-



testo 922 dual channel thermometer


Function
  Dual Channels, measure two points at the same time, range:-58~+1000

   P/NST-9221

   List price: HKD2,109,-



testo 926 food thermometer

Application
  Food industry, daily temperature measurement
Features
  highly accurate with variuos probes for different applications
Specification
  Sensor:T type
  Range:-50~+400℃

    P/NST-9261

    List price: HKD1,517,-

Probes

a. Penetration probe   -50~350℃

    P/NST-1293

    List price: HKD659,-

b. Frozen food probe -50~350℃

    P/NST-3292

    List price: HKD1,991,-

testo 105 food thermometer

Application
  Measure the core temperature of frozen food

Features
  Robust, waterproof, with three different probes for different applications, audible alarm


Specification
 Sensor:NTC

    Range:-50~+275℃
 a. probe:100mm penetration probe

    P/NST-1051

    List price: HKD858,-



    b. Probe:100mm penetration probe,90mm



       Frozen food probe,200mm long



    P/NST-1052

    List price: HKD3,189,-






testo 720 thermometer(pt100)

Application
testo 720 single channel thermometer can meet laboratory and industrial applications.

Specification
   Sensor: pt100
   Range:   -100~+800

   Sensor: NTC

   Range:   -50+150

   P/NST-7207

   List price: HKD3,739,-

Probes:

a. Food probe(IP65) -50~+400℃

   P/NST-2272

   List price: HKD2,039,-

b. Penetration probe pt100 -50~+400℃

   P/NST-1273

   List price: HKD1,124,-

b. Pt100 air probe   -50~+400℃

   P/NST-1773

   List price: HKD1,252,-




testo 735 thermometer

Function

testo 735-13 channels thermometer, it can connect thermocouple or Pt100 probe with audible alarm. Can choose high precision Pt100 penetration probe to get a system accuracy of 0.05,resolution 0.001. It can be used as a standard calibration instrumentInfrared printer is optional.



Specification
  SensorPt100K type
  Range:-200~+800℃(Pt100)
       -2000~+1370℃(K Type)
   P/NST-7351

      List price: HKD4,141,-



Probes

a.  High accuracy penetration probe  -40~+300℃

    P/NST-0235

    List price: HKD5,907,-

b. Frozen food probe  -50~+400

    P/NST-2272

    List price: HKD2,039,-




testo 945 thermometer

Function
 Dual channels(1:K/T/S type ,2:Pt100/NTC). It has memory and can record data, printout in infrared printer or connect pc for analysis.


Specification
  Sensor:NTC,T type
       Pt100
  Range:-58~+300(NTC)
     -200~+1000(T type)
      -200~+800(Pt100)

    P/NST-9450

testo 950 multi-function thermometer

Function
  it has dual channels and can measure, record, printout data, send data to PC for analysis


Specification
  Sensor:-200~+1760
  AmbientCO2:0~+10000ppm
  AmbientCO:0~500ppm
   Mechanical rpm:+20~+20000 rpm
  Current:0~+20mA
  Voltage:0~10V

    P/NST-9501

    List price: HKD14,195,-

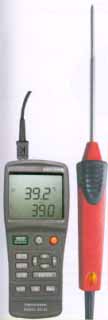

SUNGUN SD-KI professional thermometer

Function

It can be equiped with temperature probe for fast temperature measurement



-fits to various signal inputs

-large display

-direct connects to printer

-easy operatoin



resolution:0.1 /F/K<1000

Accuracy:0.5%FS+-1d

SUNGUN SD-H professional temp/humidity instrument

Function

-professional temp/humidity measurement

-auto calibration

-dual channels for various probes

-large display

-direct connects to printer

- easy operation



Range

0--100%RH ,-40---85

Humidity:0.00~+100%RH

Accuracy:+-1%RH,+-0.2



Humidity Series






testo 608-H1 wall hygrometer


Function
  Measure temp, humidity, dewpoint, max/min values


Specification

    Range:0~+50℃ 10~95%RH

          -20~+50℃td
    Accuracy:±0.5℃ ±3    %RH
    P/NST-6081

    List price: HKD549,-    MOQ: 5 pcs

testo 608-H2 hygrometer
Function
  Measure temp, humidity, dewpoint, max/min values and with LED alarm.


Specification

    Range:-10~+70℃ 2~98%RH

          -40~+70℃td
    Accuracy:±0.5℃ ±2%RH
    P/NST-6082

    List price: HKD1098,-     MOQ: 2 pcs






testo 605-H1/H2NEW mini   temp/humidity/ dewpoint instrument

New pocketline series with turnable display for convenient operation.

Battery life up to 1000 hours!

Function
  Can turn display up to 180℃ and with dewpoint values.

Specification
    Range:-20~+70℃ +5~+95%RH

          -20~+50℃td
    Accuracy:±0.5℃ ±3%RH
    P/NST-6053

    List price: HKD748,-

testo 175-H1/H2 electronic temp/humidity data logger



Features
  2 channels with internal temp/humidity sensor.


Specification



    Sensor:NTC/capacitance

    Range:-20~+70℃  0~+100%RH


    a.175-H1 without display and 3700 values

       P/NST-1757

       List price: HKD2,690,-



    b.175-H2 with display and 16000 values

       P/NST-1758

       List price: HKD3,520,-

Please order PC software and interface!




testo 177-H1 electronic temp/humidity data logger

Function
  4 channels with internal temp/humidity sensor
and an external temp probe socket for long term high accruacy measurement


Specification
    Range:-20~+70℃ 0~100%RH

          -40~+70℃td
    Accuracy:±0.5℃ ±2%RH
    External probe

    Range:-40~+120℃
    Accuracy:±0.4℃

    Memory:48000

    P/NST-1775

    List price: HKD6,997,-

SEN DAE SD-6 moisture meter

Function
  To measure the moisture of wood and

contruction materials



Specification
    Range:6~44%RH,wood

          0.2~2%RH,Construction materials
    Sensor:8mm long electrode replaceable.
    P/NSD-6



   List price: HKD2,405,-

  Special offer:HKD1,800.00,-

testo 625 humidity instrument

Function

testo 625 temp/humidity instrument with internal temp/humidity probe, 2 lines display for temp, humidity, dewpoint



Specification
    Range:-20~+70℃ 0100%RH

          -20~+50℃td
    Accuracy:±0.4℃ ±2.5%RH
    P/NST-6251

    List price: HKD3,200,-


Optional: Probe handle with cable to connect probe to testo 625
    P/NST-9725

    List price: HKD610,-

testo 635-1/-2 temp/humidity instrument

Function

testo 635-1 measures humidity, moisture content, compressed air dewpoint.

Specification
    Range:-40~+150℃ 0~+100%RH
    Accuracty:±0.5℃ ±1%RH
    Temp:-200~+1370℃

    P/NST-6351

    List price: HKD4,141,-

Probes

a. 2 in 1 probe -20~+70℃

                          0~100%RH

     P/NST-9735

     List price: HKD4,222,-

b. Air temp probe   -60~400℃

    P/NST-1793

    List price: HKD915,-



Download brochure!

testo 645 temp/humidity instrument

Function
  Dual channels, can measure, record data with max/min values, printout via infrared printer and send data to PC for analysis

Specification
    Range:0~100%RH
    Accuracy:±0.1℃ ±1%RH

    Temp:-200~+800℃(Pt100)

          -200~+1370℃(K-type)

    P/NST-6450

    List price: HKD8,024,-

Probes

a. Temp/humidity probe -20~+70℃ 0~100%RH

     P/NST-9740

     List price:HKD5,685,-

b. Air temp probe   -200~+600℃

     P/NST-9773

     List price: HKD3,293,-



Download brochure!





testo 650 Multi-function Instrument

Function
  Dual Channels with data storage, max/min values, printout and sending data to PC for analysis. Both channels are connectable to various different probes.
Specification
    Range:0~100%RH -200~+1760℃
    AccuracyMax±0.1℃ ±1%RH
    Ambient CO2:0~10000ppm
    Ambient CO:0~500ppm
    aw:0~+1aW
    rpm:20~20000 rpm
    current/voltage:0~20mA,0~10V
    Positive pressure:0~+70bar
    Differential pressure:0~100mbar
    Absolute pressure:0~+2000mbar

    P/NST-6501

    List price: HKD13,404,-



Download brochure!




testo 171-3 professional humidity data logger


Function

Magnetic start, internal temp/humidity probe, optional printer, IP65.


Specification
    Sensor:NTC,testo humidity sensor
    Range:-10~+50℃ 0~100%RH
    Accuracty:±0.4℃ ±3%RH

    Memory:20000 data
    RemarkNeed to order interface and software seperately
    P/NST-1713

    List price: HKD10,778,-



testo171-2 professional humidity data logger
    Range:-20~+70℃ 0~+100%RH
    Accuracy:±0.4℃ ±2%RH
    Memory:55000 data
    P/NST-1712

    List price: HKD20,242,-



testo temp/humidity transmitter

Function
    Fix installation, output signal  0~10/2/0.5V4 wires with Pt100 sensor


Specification
    Range:-20~+70℃ 0~+100%RH
    Accuracy:±2%RH
    Power:18~28VDC,1.6m cable
    Dimension:230 mm long, 21mm dia.
    P/NST-9741

    List price: HKD6,090,-

testo heated temp/humidity transmitter


Function

heated humidity sensor to avoid sensor condensation due to high humidity environment.


Specificaiton
    Range:-20~+70℃ 0~+100%RH
    Accuracy:±2%RH



    Power:18~28VDC,1.6m cable
    Dimension:230mm long, 21mm dia.

    P/NST-9742

    List price: HKD7,190,-

testo 6740 pressure dewpoint sensor

Function
  Fast connection without display,

4-20mA output


Specification
    Range:0~+50℃ -60~+30℃td
    Power:24VDC

    P/NST-6741


testo6743 pressure dewpoint sensor with display


 -sames as testo 6740 but with display
   P/NST-6743


    Remark: cable and power supply are not included



Hygrotest 650 temp/humidity transmitter



Function
  Fix installation(wall mount/duct mount) with display and 4-20mA output,RS485 interface


Specification
    Range:-20~+70special +180
          0~+100%RH
    Accuracy: ±3%RH(special ±1%RH)
    P/N:650WHT-20/70


Hygrotest 650HT-20/180transmitter

(industry)


Specification
    Housingmetalic coating

    Range:-20~+180 0~+100%RH
    Accuracy:±1%RH
    Output:2 wire,4~20mA

    P/N:650WHT-20/180



Download brochure!



Infrared Thermometer Series



testo 805 mini infrared thermometer



Function

    80mm long, can put in pocket. Non-contact measurement. Good for quick temp. check for goods receiving department.



Specificatoin
   Range:-25~+250℃
   Optics:1:1

      Max/min display

      Topsafe(IP65)

      P/NST-8051

      List price:HKD836,-

testo 830-T1 Infrared thermometer



Function

    Gun type design, non-contact surface temp measurement with emmissivity selectable.



Specification

        Range:-30~+400℃

        Accuracy: +/-1.5C(0.1...400C)

Optics8:1

        visual and audible alarm

        Emissivity changeable(0.2~1.0)

        P/NST-8301

        Liist price:HKD1,045,-

       Special offer

     HKD900,-

testo 825-T2 infared thermometer

Function
   With hold, laser sighting and audible alarm
Specification
   Range:-50~+400℃,surface temperature
  Emissivity changeable:0.20~1.00
  Optics:3:1
  P/NST-8256

       List price:HKD2,231,-

   Special Offer:HKD1,400.00,-

testo 825-T4 2 in 1 Infrared thermometer

Function
  With hold, non-contact or contact surface temp measurement, laser sighting and audible alarm


Specification
   Range:-50~+400℃
     -50~+250℃ contact
  Emissivity changeable:0.20~1.00
  Optics:3:1
  P/NST-8258

    List price:HKD3,747,-




testo 826-T2 food infrared thermometer

Function
  With hold, laser sighting and audible alarm
Specification
   Range:-50~+400℃
   Optics:3:1
   P/NST-8262

      List price: HKD1,409,-






testo 826-T3 2 in 1 food thermometer

Function
  With hold, contact and non-contact temp measurement.
Specification

      Range:-50~+400℃
     -50~+230℃ contact
  Optics:3:1
  P/NST-8263

    List price: HKD2,980,-



testo826-T4 2 in 1 food thermometer

- same as testo 826-T3 but with laser sighting and alarm.
  P/NST-8274

    List price: HKD2,800,-

OPTEX waterproof food thermometer

Function
  Measure surface temp, with hold/max/min, visual and audible alarm, IP67, 99 values and laser sighting and continuous measurement function.


Specification
  Range:-30~+200
  Emissivity:0.95 hot/0.85 cold
  Optics:12:1

        Resolution: 0.1C
  P/NPT-7LD

        List price: HKD2,500,-


testo 860-T1/T2/T3 professional Infrared thermometer

Function
  Surface temp measurement with 3 laser sighting, hold/max/min and visual aarm

Specification
  Range:-30~+900
  Emissivity:0.10~1.00


    a.testo860-T1  Optics: 60:1

      no record
      P/NST-8601

      List price: HKD12,440,-


    b.testo860-T2  Optics: 60:1

      can connect external probe with 100 data storage and PC connection socket(interface and software are optional)
      P/N:0560 8602


    C.testo860-T3  Optics: 50:1

 can connect external probe with 100 data storage and PC connection socket(interface and software are optional)

     P/N:0560 8603

SL305 Economy Infrared Thermometer


Function

Gun shade design for non-contact temp measurement with audible and visual alarm, emissivity and CT value.




Specification
    Range:-30~+500℃
    Accuracy:±1C(+/-1%)
    Response time: 0.3s

    Optics: 1:8

   Alarm: Selectable

Alarm mode: visual and audible alarm
   Alarm switch:
on/off

   Laser sighting:on/off
   Backlight
:on/off
   Display
:max/min/CT value/instant value


     P/N:SL-305

     List price: HKD990,-







SL309 High Temp Infrared Thermometer


Function

Gun shade design for non-contact temp measurement with audible and visual alarm, emissivity and CT value.




Specification
    Range:-30~+950℃ (short time to 1000C)
    Accuracy:±1C(+/-1%)
    Response time: 0.3s

    Optics: 1:20

   Alarm: Selectable

Alarm mode: visual and audible alarm
   Alarm switch:
on/off

   Laser sighting:on/off
   Backlight
:on/off
   Display
:max/min/CT value/instant value



     P/N:SL-309

     List price: HKD1890,-

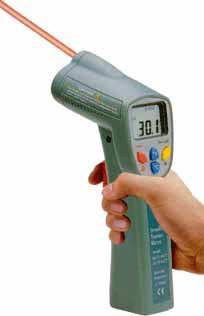

ST-8812 low cost infrared thermometer




Feature

Gun shade design for non-contact temp measurement.


Specification
    Range:-50~+500℃
    Accuracy:±2C(+/-2%)
    Optics: 1:8

    Laser sighting:on/off

    Backlight:on/off


    P/N
ST-8812

    List price: HKD380,-













































ST-8810 Forehead Infrared Thermometer -NEW



It is non-contact forehead thermometer for fast checking of human forehead temperature. It has been widely used during SARS outbreak.



Product

- Non-contact measurement

- Measures in 0.5 second and hold the value when trigger is released.

- safe and hygiene with accurate forehead temp measurement.

-special design for forehead temp measurement, different from industrial infrared thermometer.

- resolution: 0.1 C



Specification



Range:

30 ...50C

Accuracy

< 0.5 C

Resolution

 0.1 C

Response time:

500 ms

Power:

9 V battery

Operation temp:

~25C

Weight:

~100 g



P/NST-8810

List price: HKD800,-



Download brochure!



SG-16 Infrared temperature sensor

Specification
Originated visible/focusing lens different from traditional measuring techique.

-By placing video device around same axis with measurng lens, you can monitor objects and temp in simultaneously.
-robust aluminium casing for adverse working environment.
-optional fibre probe up to 250℃ working temperature.
- analogue output:0/4~20mA, PID output
- Digital communication module as optionalRS232 or RS485 baudrate max. 57.6Kbd(built-in) or PROFIBUS(external)
Response time adjustable: 1ms~10s
-Emissivity adjustable:0.20~1.00


Range

250~1000

Accuracy:

1500:±0.3% or ±1 ;

Video output

PAL or NTSC ; independent BAS signal, 1Vss 75Ω, CCIR standard, 50Hz



Optional adjustable focus lens. Minimum target: 0.35mm dia.
Three types of adjustable lens:

Lens A0.35mm@130mm;

Lens B0.5mm@190mm;

Lens C0.9mm@340mm









 Online Infrared sensor

  ModelSG-02SG-20
  Made in Germany

Feature

Range: -40~900

Accuracy: ±1% or ±1

Operation temperature: 0~180

Signal output: 0/4~20mA; 0~10V; J; K

Power: 8~36VDC

Response time: 150ms

Emissivity: 0.100~1.100 adjustable

Max/Min/Mean values

Temperature compensatoin

Display actual, CT value

USB/RS232/RS485 selectable

2 relays output. Can connect up to 32 sensors via RS485


Smallest Infrared Sensor-SG10 series



SG10 series online linear infrared sensor takes the leading role in performance and cost. As the smallest high temperature infrared sensor in the world,it is widely used in various industries and applications. RS 232 interface is supported by profeesional software to conduct remote monitoring and adjust the working parameter of sensor.



Application
Metal, glass, semi-conductor, plastic etc.

Specification

Range: 600~1600

Accuracy: ±0.5% or±1℃ ±1% or ±1

Spectral range:0.9um

Optics:50:1

Response time: 50ms

Emissivity:0.10~1.00 adjustable

Signal:max/min/mean

Output signal: 4~20mA ; digital output Rs232

Probe dimension:M18×130

Operating temperature:-10~60(add air for cooling-10~120

add water for cooling:0~250℃)





Portable digital radiation thermometer IR-AH
IR-AH can measure from -50℃~3000℃ with 600~3000℃, 900~3000℃ and -50~1000℃ models.

-easy reading of values

-wide measuring range

-large optical distance ratio allows user to measure very small object from long distance.

Models

Model

Type·Optical distance ratio

IR-AHS

Middle(100)

IR-AHU

High(250)

IR-AHT()

Low(40)

Specification

Model

Middle

IR-AHS

High

IR-AHU

Low

IR-AHT

Measuring method

Narrow band radiation thermometer

Wide band radiation thermometer

Range

600~3000℃

900~3000℃

-50~1000℃

Detecting element

Si

Thermopile

Spectral range

0.96μm

0.65μm

8~13μm

Accuracy

<1500℃:±0.5%±1digit
1500~2000℃:±1%±1digit
>2000℃:±2%±1digit

<200℃:±2℃±1digit
>200℃ : ±1%±1digit

Repeatibility

1℃±1digit

Stability

1)Temperature drift:0.015%/℃

2) Stability: +/-5C under EMC test environment

<300℃:0.15℃/℃
300℃ - 700℃:
0.005%/℃
>700:±0.025%/℃

Resolution

1℃

1℃(higher than 50℃)

Response time

0.5s

1s

Optics

Focusable lens type

cassegrain focusable mirror type(IR-AHT)

Distance factor:
measuring distanceL
/mesauring dia.D

100

250

40

Measuring distance

0.5~∞

0.7~∞

Measuring dia.

D=L/100
(φ、mm)

D=L/250
(φ、mm)

D=L/40
(φ、mm)

Viewing object

direct viewing finder

Lens dia.

φ30mm

φ40mm

Display

LCD digital 4 digits, displayed in the viewfinder and on the panel board

Memory

max. 1000 data

Emissivity

1.00~0.10(0.01 increment

Signal

actual, max, min, mean

Communication

RS-232C(software to be purchased seperately

Operation temp

0~50℃

Power

3AA x 4 pcsabout 20 hours for continuos measurement

Housing material

ABS

Weight

~700g






*Above prices are for reference only!

















Home











































































































































































































































































































































Suntech Instruments Co., Ltd. @ Copyright (C) 2003 All Rights Reserved

Tel: 852-3525 7168  Fax: 852-3525 2177  Email: suntechnologiesco@yahoo.com.hk, sales@suntech-hk.com  website: www.suntech-hk.com
